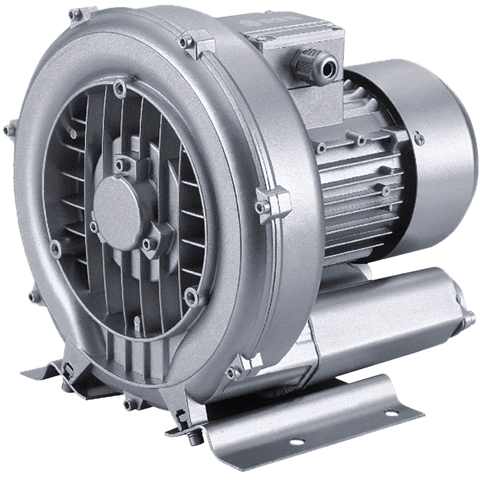

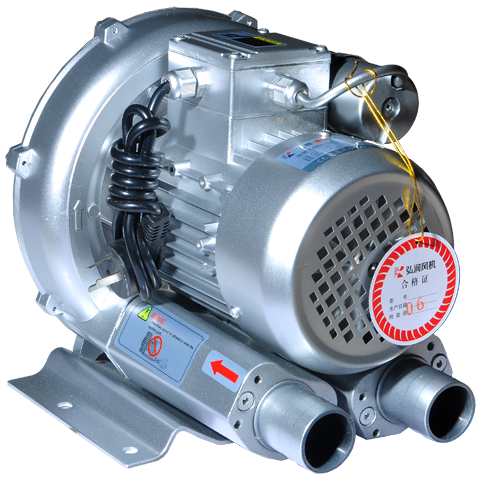

Product name:: XGB212-370W

TEL:0580-8080435

Introduction
Parameter
Chart
Case

Scope：

Pneumatic transport systems, vacuum lifting and clamping systems, packaging machines, bagging / bottling / filling systems, soil improvement, foam forming systems, mail classification and parcels, food processing systems, laser printers, dental vacuum suction machines, paper processing systems, two-stage fans, printers, duplicating machines can meet higher requirements, darn machines, fishpond ventilation systems, gas analysis, swimming pool ventilation。

Principle：

When the impeller of the high-pressure blower rotates, due to the centrifugal force, the wind vane makes the gas move forward and outward, thus forming a series of spiral movements. The air between the blades of the impeller is spirally accelerated and the gas outside the pump body is squeezed into the side groove (inhaled by the suction port T). When it enters the side channel ②, the gas is compressed, and then it returns to the blades of the impeller 1 to accelerate the rotation again. When the air passes through the impeller and side slot along a clamped spiral track, each impeller increases the degree of compression and acceleration. With the progress of rotation, the function of the gas increases, which further increases the gas pressure along the side channel. When the air reaches the connection point between the side seeding and the discharge flange (the side channel narrows at the outlet & gt;), the air is extruded out of the blade and discharged from the pump body through the outlet muffler 4.

Model	Motor				Weight	Noise	Qmax	Vacuum	Mpa	Vacuumvalves
	Rate	Rated								Vacuumvalves
	Rate	Output power	Voltage	Electricity						Type*Model
	Hz	KW	V	A	KG	Db(A)	m³/h	mbar	mbar	2B*4...
XGB2-11	60	0.37	220/380	3.0	56	96	-130	140	12B2114/...2142

Drawing

Model	XGB1-10A	XGB1-10B	XGB2-10	XGB2-20	XGB3-10	XGB4-10	XGB4-20	XGB5-10	XGB5-20	XGB6-10	XGB7-10	XGB7-20	XGB8-10	XGB8-20	XGB9-10	XGB9-20
Phase	1	1	3	3	3	1	3	1	3	3	3	3	3	3	3	3
A	184	200	246	284	268	286	322	334	372	360	382	426	451	500	550	615
A1	-	-	-	316	-	-	324	-	411	-	-	426	-	549	-	780
B	200	212	247	270	272	302	315	337	371	366	384	410	461	490	569	607
C	80	86	90	45	93	115	58	120	60	122	125	63	152	152	207	103.5
D	157	184	205	205	205	225	225	270	270	284	290	290	356	356	360	360
E	172	204	230	230	230	255	255	320	320	325	325	325	394	394	415	415
F	205	227	219	316	260	294	401	314	465	354	377	473	450	589	525	752
G	82	105	92	135	92	160	191	160	190	191	191	191	230	230	268	345
H	93	110	128	128	141	154	154	175	175	192	197	197	240	240	300	300
H1	-	-	-	106	-	-	153	-	144	-	-	162	-	199	-	234
J	72	98	101	111	101	120	128	120	135	128	128	128	148	148	167	167
K	55	65	83	83	83	95	95	140	140	140	140	140	170	170	533	533
L	115	130	108	108	108	130	130	190	190	180	180	180	2174	217
M	66	62	75	75	82	70	73	96	98	64	64	84	140		39	39
N	47	50	71	130	69	75	151	87	171	74	109	205	124	236	89	230
O	26	33	39	39	41	46	45	48	48	56	54	53	65	65	92	92
P	-	-						55	55	56	55	55			100	100
Q	-	-	64	64	64	72	72	83	83	93	83	83			150	150
R	7	8	10	10	10	12	12	14	14	13	15	15	15	15	15	15
S	2	2.5	2.5	2.5	2.5	3	3	4	4	4.5	4.5	4.5	6	6	21	21
T	-	-	-	88	-	-	104	-	106	-	-	130	-	-	-	117
U	-	-	M6*17	M6*17	M6*17	M6*19	M6*19	M8*17	M8*17	M8*17	M8*17	M8*17			M12*30	M12*30
V	M14*15	M16*15	M16*15	M16*15	M16*15	M16*15	M16*15	M16*15	M20*15	M20*15	M20*15	M20*15

The following performance curve is measured under the condition of suction of 15 ℃ air and exhaust pressure of 1013mbar. When the tolerance is & plusmn; 10%, and the suction air and ambient temperature are not more than 25 ℃, the total pressure gauge shown in the figure can be reached.
